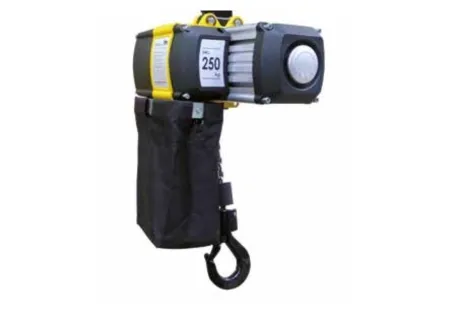

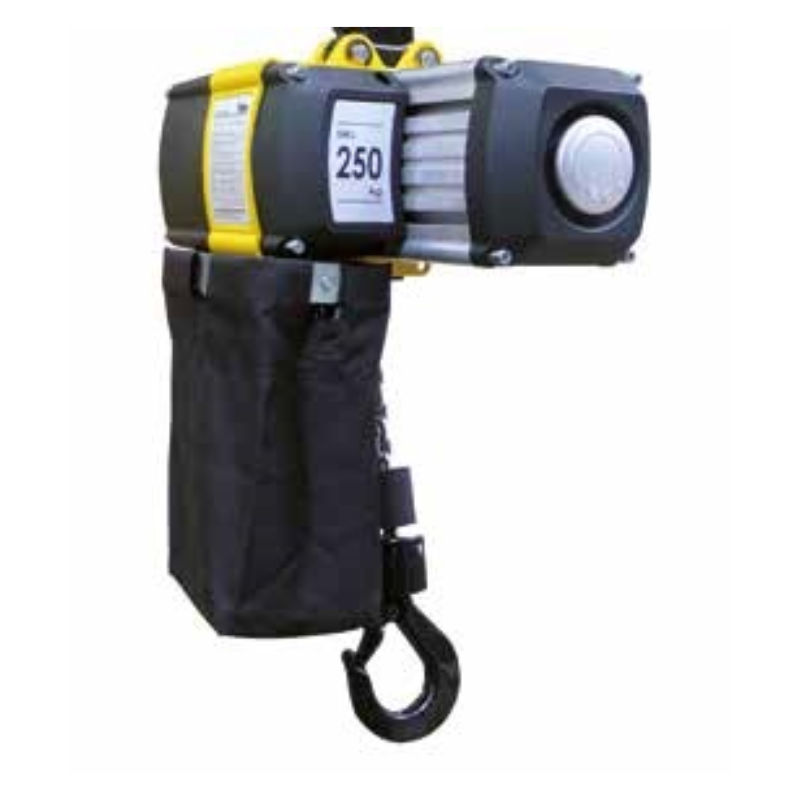

250Kg Yale CPV F 400v Electric Chain Hoist
Brand:
Capacity
Capacity 250Kgs
(0.25 tonne)
Description
The Yale CPV/F 250kg electric chain hoist is a high-quality, robust, and compact unit, perfect for industrial use. Operating on a standard 400V, 3-phase, 50Hz supply, this 250kg hoist offers powerful and reliable lifting for lighter loads.
Add to cart
Add to quoteRelated products
CM Lodestar Electric Chain Hoists (400V)
CM Lodestar 400v
£2,914.98 ex VAT
£3,497.98 inc VAT
-494x340.webp)
Stahl ST Electric Chain Hoist - 400 volt output
ST
The Stahl ST Electric Chain Hoist is a powerful yet energy-efficient solution, demanding minimal maintenance while delivering consistent, high-performance lifting.
£1,029.98 ex VAT
£1,235.98 inc VAT
Liftket Star Electric Chain Hoist
Star
The Star range of Electric Chain Hoists from German manufacturer LIFTKET. The Liftket range is a quality built robust hoist which are currently our best selling hoist due to their superior build quality and performance ratings. Suitable for lifting most industrial loads from 125Kgs up to 5,000Kgs.
£1,295.98 ex VAT
£1,555.18 inc VAT
125Kg Yale CPS Electric Chain Hoist
YALE CPS 125
125Kg Yale CPS Electric Chain Hoist is a small, lightweight hoist with top hook suspension for easy attachment to most suspension points. Available in 110 volt, 230 volt, or 400 volt power supply. Weight of only 12Kgs
£1,348.98 ex VAT
£1,618.78 inc VAT
250Kg Yale CPS Electric Chain Hoist
YALE CPS 250
250Kg Yale CPS Electric Chain Hoist is a small, lightweight hoist with top hook suspension for easy attachment to most suspension points. Available in 110 volt, 230 volt, or 400 volt power supply. Weight of only 14Kgs
£1,446.82 ex VAT
£1,736.18 inc VAT
500Kg Yale CPV F 400v Electric Chain Hoist
CPVF 5-4
The Yale CPV-F Electric Chain Hoist 500kg (400V) offers reliable lifting for various industrial applications. This robust 500kg electric chain hoist is available with both single and dual hoist speeds, making it a versatile 500kg hoist solution.
£1,298.98 ex VAT
£1,558.78 inc VAT
250Kg Yale CPV F 400v Electric Chain Hoist
The Yale CPV F Electric Chain Hoist 250kg with a 400V power supply is highly rated as one of the best 250kg electric chain hoists in its class. Yale sets exceptionally high standards when designing this new model in their already popular electric chain hoist series. Released a few years ago, the new CPV hoist combines modern design with technical innovation. Its robust, compact construction makes this 250kg chain hoist a versatile unit ideal for industrial applications. With a service-friendly modular design, it allows easy access to all critical components, facilitating time-saving maintenance and periodic inspections.
The integrated upper and lower limit switches significantly extend the lifespan of the slipping clutch, motor, and gearbox. The CPV is equipped with electromagnetic spring pressure brakes that hold the load safely, even in the event of a power failure. Another notable feature of the CPV 250kg hoist is its externally adjustable slip clutch, designed to ensure a permanent connection between the load and the brake. Mainline contactors, fitted as standard, offer increased safety.
Yale CPV 250kg Electric Chain Hoist Features:
- SWL: 250 kg
- Supply Voltage: 400V 3ph 50Hz
- Suspension Options: Available with lug suspension, hook suspension (supplied as standard), push trolley, and single-speed or dual-speed travelling trolley.
- Falls of Chain: Available in 1 fall (single)
- Hoist Speed: 8 & 2m/Min (dual speed)
- Chain Containers: Can be supplied
- Height of Lift (HOL): Available from 3 m to 15 m (higher on request, as there are no restrictions on overall length)
- Optional Extras:
- Radio Remote Control: Replaces the standard wired pendant. Will enhance the safety and efficiency of lifting and positioning operations.
Model Variations for 250kg Capacity:
| Model | Capacity | Hoist Speed | Fall of Chain | Weight Hoist only | Weight with Push Trolley | Weight with Electric Trolley |
| CPV/F 2-8 | 250Kgs | 8 & 2m/Min | Single | 19Kgs | 28Kgs | 33Kgs |
Customise Your Yale 250kg Electric Hoist
Any additional height of lift is available; the standard is 3m, and additional heights are sold in complete metres only. Standard hoists at 3m are supplied with a 2m pendant cable. As the lifting height increases, the pendant cable length will be adjusted pro rata. The hoist body can be fitted with a raincoat, with three sizes available to suit all hoist sizes. Powered trolley raincoats are also available, but only up to a 2-tonne capacity. Radio remote control is available for the above hoists, fitted at the factory before dispatch, and tested and certified. Please contact the ULS Team for more information.
Installation Assistance
For those looking for assistance in installing their 250kg hoist, we’re here to help. The ULS team of fully qualified engineers is on hand to install electric hoists at your premises - simply call us for a quotation or additional information.
Optional Extras
Make the electrical installation of the Yale CPV-F Electric Chain Hoist 250kg; purchase the Yale Festoon Power Supply Cable System from ULS Lifting at the same time as the CPV-F Hoist? This cost-effective Industrial Festoon System is designed specifically for Electric Chain Hoists. The system will be supplied with all parts and cables required to install your power cable supply on top of a suitable runway beam or steelwork.

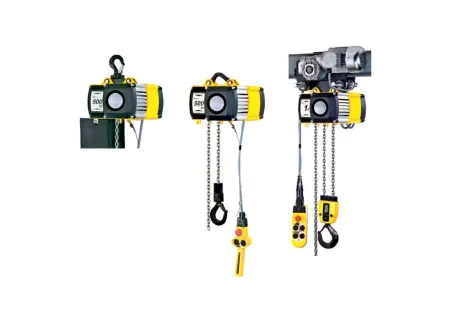

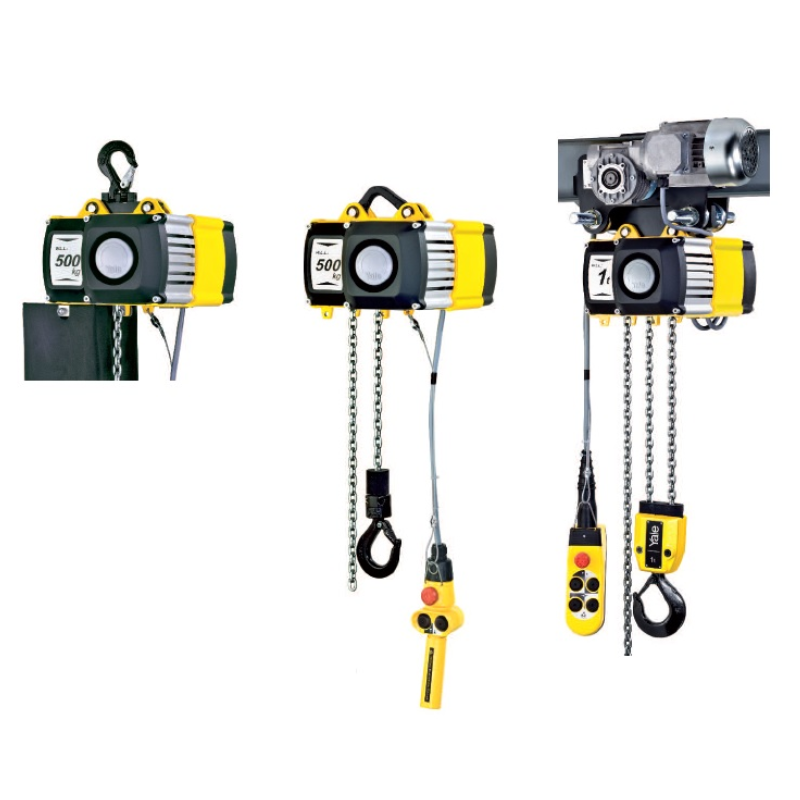

Suspension Options available

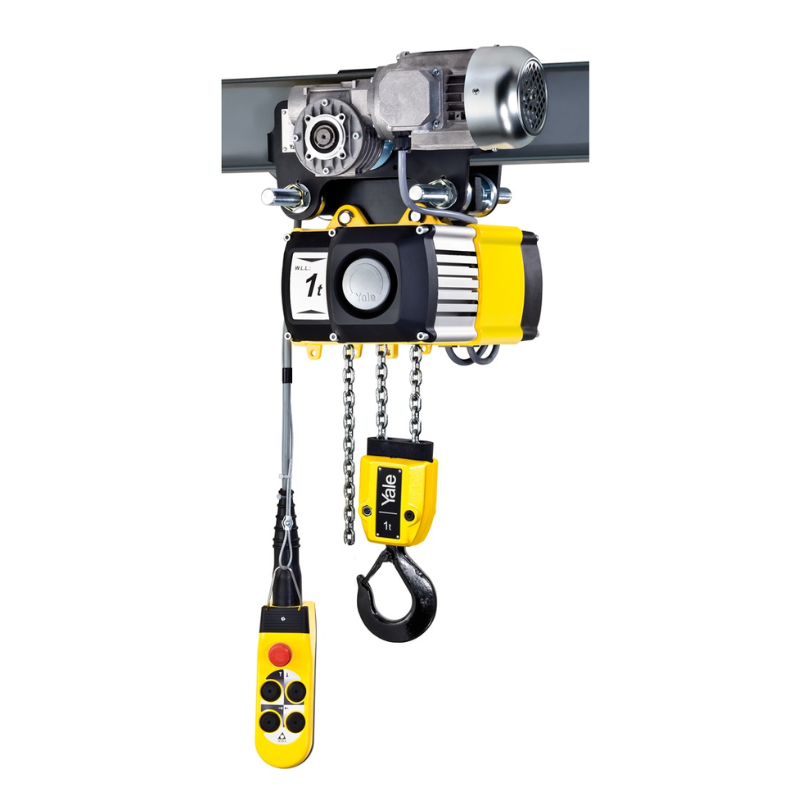

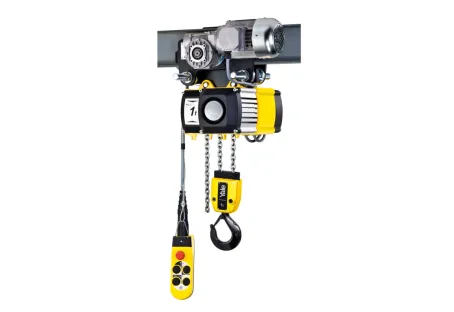

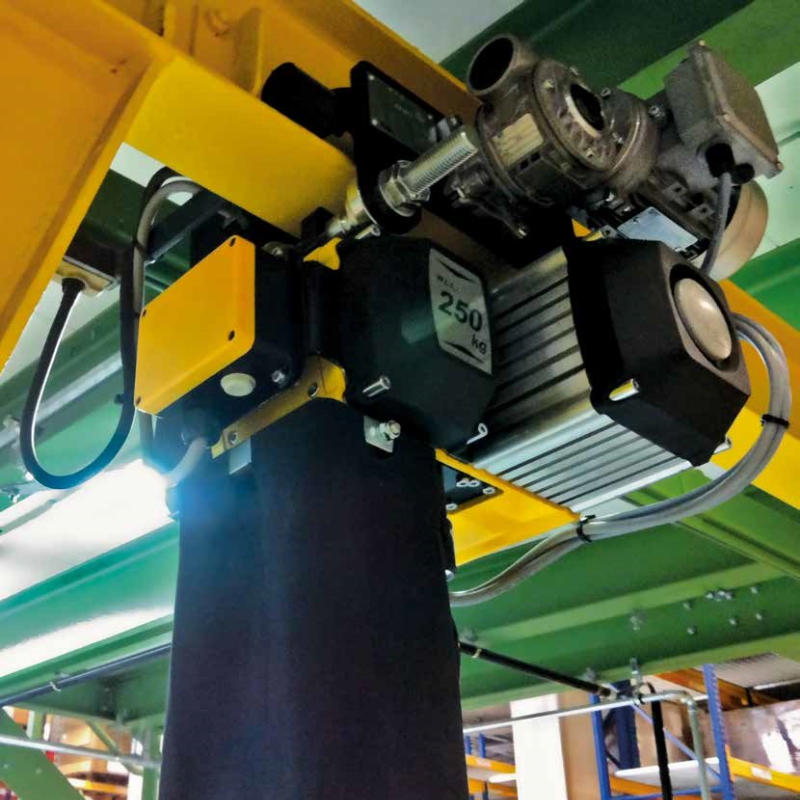

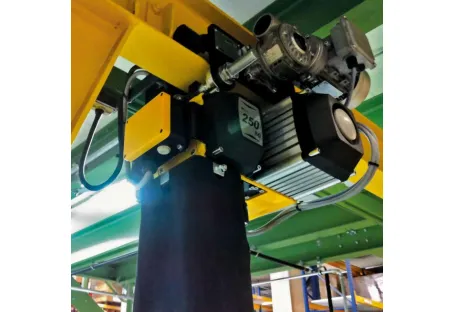

Top Hook suspension (supplied as standard), Lug Suspension, and Powered Travel (see below)
CPV / F Hoist Features Include:
- Increased operating safety through a 42V control voltage (low voltage control) and a main contactor.
- An integrated limit switch for the highest and lowest hook positions, considerably extending the service life of the slip clutch, motor and gearbox.
- Overload protection (slip clutch) in all CPV hoists, which allows for higher safety requirements.
- An electromagnetic spring pressure brake that holds the load safely even in the event of a power failure.
- Different suspension types are available, such as top hook, lug, or integrated trolley. A retrofit to another type of suspension is possible.
- Custom chain lengths (lifting heights) are available upon customer request.
- An oil bath gearbox (or semi-fluid grease with CPV/F 2-8 and 5-4, as well as CPV 2-4 and 5-2) featuring helical gearing for particularly smooth operation and enhanced lifespan.
- All-steel chain guide.
- The chain guide of the smallest hoists (CPV/F 2-8 and 5-4, as well as CPV 2-4 and 5-2) consists of a thermoplastic (POM) chain guide that is integral to the housing.
- The CPV series is protected up to IP 55 against dust ingress and water jets.
- A 2-year warranty (excluding worn parts) and a lifetime lubricated gearbox.
- Duty cycle of 50% ED for single speed.
- Standard operating voltage: 400V, 3Ph, 50Hz.
- Available with either Top Hook suspension or Lug for reduced headroom. Lug fitting is designed for easy integration into trolley applications (customer to specify at the time of ordering).
- Fully tested and certified.
CPV 250kg Electric Hoist Features:
Exceptional Duty Cycle: Designed for sustained use with a 50% ED duty cycle for reliable single-speed operation.
High Standards Compliance: Built and tested to meet the rigorous FEM 1Am and HMI H3 standards for quality and performance.
Powerful Operating Voltage: Runs on a standard 400V, 3-phase, 50 Hz power supply.
Optimal Protection: The hoist motor is classified as H3 and protected to IP 55, safeguarding it against dust ingress and water jets for extended operational life.
Superior Safety and Control
Safety is paramount, and the Yale CPV 250kg chain hoist is packed with features to protect your operators and your load:
Secure Braking System: An electromagnetic spring pressure brake reliably and safely holds the load, even if there is a power failure or interruption.
Enhanced Load Security: An externally adjustable slip clutch is integrated to ensure a permanent, secure connection between the load and the brake, providing consistent protection.
Added Electrical Safety: Features a mainline contactor for enhanced circuit safety and is equipped with a 42V low-voltage control system.
Durable Pendant Control: The pendant control is IP 65-rated and fully encapsulated, offering superior resistance to dust and water.
Easy Maintenance
The thoughtful design of this 250kg hoist ensures maintenance is straightforward, minimising downtime:
Quick Access Components: The load sprocket and chain guide are easily accessible for quick inspection or removal without the need to fully disassemble the entire hoist unit.
Fully Certified: Every unit is fully tested and certified, guaranteeing quality right out of the box.
Model Specifications (250kg):
| Model | Capacity | Hoist Speed | Fall of Chain | Weight Hoist only | Weight with Push Trolley | Weight with Electric Trolley |
| CPV/F 2-8 | 250Kgs | 8 & 2m/Min | Single | 19Kgs | 28Kgs | 33Kgs |
| Model | Capacity | Hoist Speed | Fall of Chain | Weight Hoist only | Weight with Push Trolley | Weight with Electric Trolley |
| CPV/F 2-8 | 250Kgs | 8 & 2m/Min | Single | 19Kgs | 28Kgs | 33Kgs |
| CPV/F 5-4 | 500Kgs | 4 & 1m/Min | Two | 21Kgs | 30Kgs | 35Kgs |
| CPV 5-8 | 500Kgs | 8m/Min | Single | 21Kgs | 30Kgs | 35Kgs |
| CPV/F 5-8 | 500Kgs | 8 & 2m/ Min | Single | 27Kgs | 42Kgs | 50Kgs |
| CPV 10-4 | 1,000Kgs | 4 m/Min | Two | 28Kgs | 43Kgs | 51Kgs |
| CPV/F 10-4 | 1,000Kgs | 4 & 1m/Min | Two | 29Kgs | 44Kgs | 52Kgs |
| CPV 10-8 | 1,000Kgs | 8m/Min | Single | 58Kgs | 77Kgs | 84Kgs |
| CPV/F 10-8 | 1,000Kgs | 8 & 2m/Min | Single | 59Kgs | 78Kgs | 85Kgs |
| CPV 20-4 | 2,000Kgs | 4 m/Min | Two | 63Kgs | 82Kgs | 89Kgs |
| CPV/F 20-4 | 2,000Kgs | 4 & 1m/Min | Two | 64Kgs | 83Kgs | 90Kgs |
| CPV/F 25-8 | 2,500Kgs | 8 & 2m/Min | Single | 85Kgs | 147Kgs | 161Kgs |
| CPV/F 50-4 | 5,000Kgs | 4 & 1m/Min | Two | 98Kgs | 160Kgs | 174Kgs |
Ready to Work
The 250kg Yale CPV F 400v Electric Chain Hoist you receive has been fully tested and is guaranteed to be in excellent working order. It includes comprehensive operating instructions and the necessary conformity certificate, allowing you to put your new 250kg electric hoist to use right away.
Required Inspections
For the safety of your personnel and compliance with all national and international occupational safety regulations, all hoisting equipment must be inspected by a qualified professional at least annually.
Please note that severe or adverse working conditions may necessitate more frequent inspections to ensure the ongoing reliability of your electric hoist 250kg.
Professional Servicing
For annual servicing of your 250kg electric chain hoist or any similar lifting equipment, the qualified team at ULS is here to help.
To schedule your chain hoist 250kg inspection or to discuss a preventative maintenance plan, please contact our Sales Team at ULS:
Email: sales@ulslifting.com
Phone: 01384 986 026
Yale is one of the most popular brands in the material handling industry, trusted for applications ranging from offshore oil platforms to pulp and paper production.
Renowned for its broad product range, the Yale brand represents top quality and performance. Often included in complete overhead lifting systems, Yale products are used across hundreds of industries worldwide. In addition to its premier line of wire rope hoists, Yale also offers electric chain hoists, manual hoists and lever tools, all under the same trusted name.
FAQ's for the 250Kg Yale CPV F 400v Electric Chain Hoist
Why choose a Yale CPV/F 250kg Electric Chain Hoist?
The Yale CPV/F 250kg electric chain hoist from Ultimate Lifting Solutions Ltd is specifically designed for lighter lifting tasks requiring precision and reliability. This small-framed hoist body is supplied on a single fall of chain with a fast dual lifting speed of 8m and 2m per minute, making it highly efficient for various industrial applications.
If you need assistance choosing the correct size electric hoist for your 250kg lifting requirements, feel free to contact the Ultimate Lifting Solutions technical hoist sales team at 01384 986 026, and we will guide you through your requirements.
What is the maximum lifting capacity of the Yale CPV/F 250kg Electric Chain Hoist?
The Yale CPV F Electric Chain Hoist in this variant has a maximum lifting capacity (SWL - Safe Working Load) of 250 kg.
What power supply does the 250kg Yale CPV F hoist require?
This hoist operates on a 400V, 3-phase, 50Hz power supply, which is standard for many industrial settings.
Is the Yale CPV/F 250kg Electric Chain Hoist available with single or dual speed?
The 250kg CPV/F 2-8 model is available with a fast dual lifting speed of 8m/min for quick lifting and 2m/min for precise positioning.
What suspension options are available for this Yale 250kg hoist?
You can choose from various suspension options to accompany your Yale CPV hoist, including top hook suspension, lug suspension (for reduced headroom), push trolley, or single-speed/dual-speed electric travel trolley, allowing for flexible installation.
What is the standard height of lift (HOL) for the Yale 250kg hoist?
The standard height of lift for the Yale CPV hoist is 3 meters, but custom chain lengths are available on request, as there are no restrictions on overall length. Additional heights are sold in complete meters.
Does the Yale CPV/F 250kg Electric Chain Hoist come with overload protection?
Yes, all Yale CPV hoists, including the 250kg electric hoist model, feature an externally adjustable slip clutch for overload protection. This ensures a permanent connection between the load and the brake, preventing the hoist from being overloaded.
Is the Yale CPV/F 250kg Electric Chain Hoist suitable for outdoor use?
The Yale CPV hoist series is protected to IP55 against dust ingress and water jets. For enhanced protection in exposed outdoor conditions, optional raincoats are available for the hoist body.
What is the warranty period for the Yale CPV/F Electric Chain Hoist?
The Yale CPV F Electric Chain Hoist comes with a 2-year warranty (excluding wear parts) and a lifetime lubricated gearbox.
How often should my hoist be inspected or serviced?
Following national and international occupational safety and health regulations, hoisting equipment must be inspected at least annually by a qualified professional. More frequent inspections may be required under adverse working conditions.
