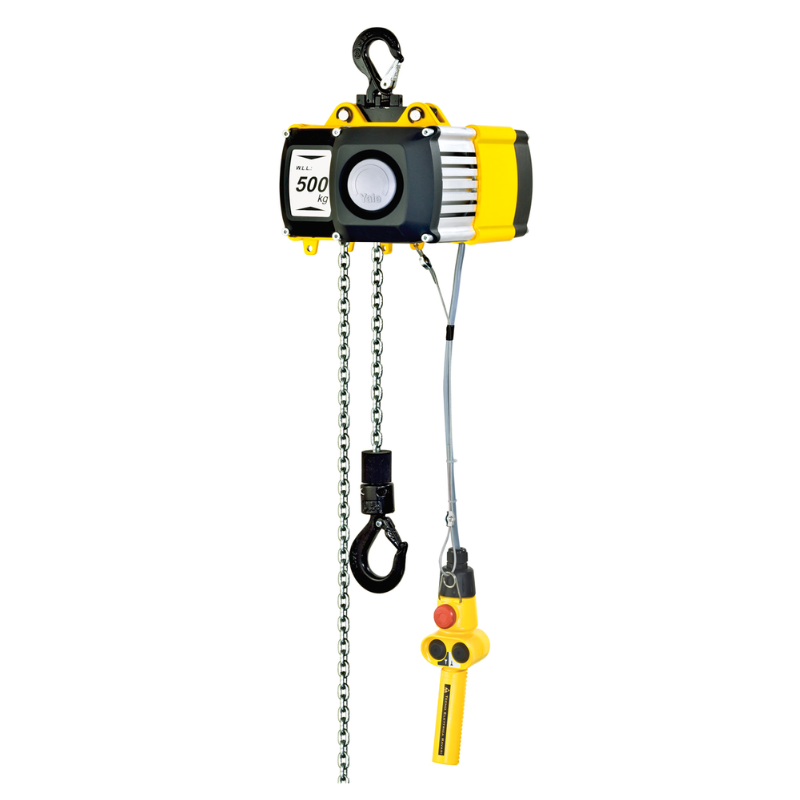

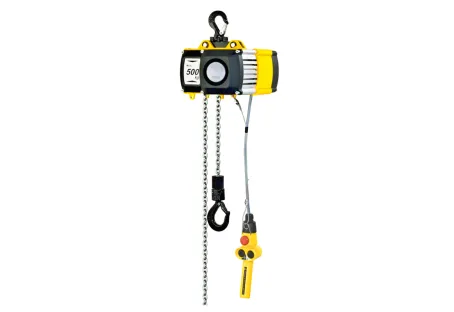

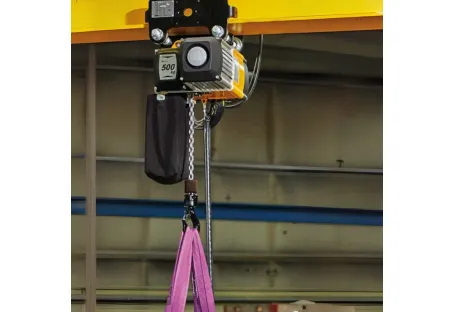

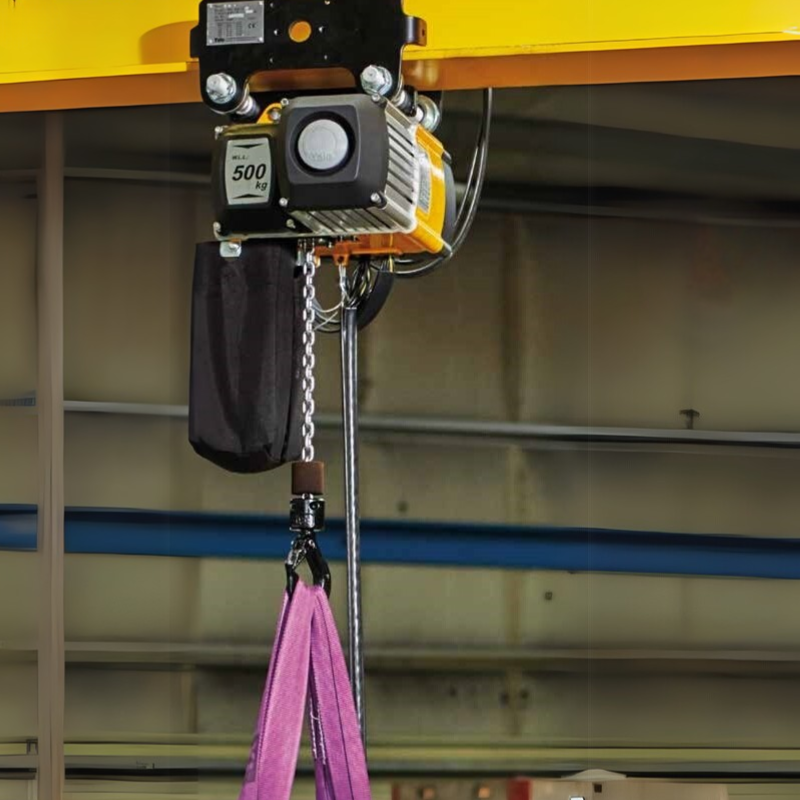

500Kg Yale CPV F 400v Electric Chain Hoist

The Yale CPV F Electric Chain Hoist 500kg provided has been fully tested and is in good working order. It comes with operating instructions and the relevant conformity certificate.

Please note: Per national and international occupational safety and health regulations, hoisting equipment, including your 500kg electric hoist, must be inspected at least annually by a qualified professional. Adverse working conditions may require more frequent inspections. For annual servicing of this product or any similar equipment, please contact our Sales Team at ULS on sales@ulslifting.com or 01384 986 026.

Yale is one of the most popular brands in the material handling industry, trusted for applications ranging from offshore oil platforms to pulp and paper production.

Renowned for its broad product range, the Yale brand represents top quality and performance. Often included in complete overhead lifting systems, Yale products are used across hundreds of industries worldwide. In addition to its premier line of wire rope hoists, Yale also offers electric chain hoists, manual hoists and lever tools, all under the same trusted name.

FAQ's about the 500Kg Yale CPV F 400v Electric Chain Hoist

Why Choose a Yale CPV or Yale CPV/F 500kg Chain Hoist?

One of the advantages of ordering the Yale CPV High-Performance Electric Chain Hoist from Ultimate Lifting Solutions Ltd is the variety of model options available to suit most requirements, specifically for a 500kg capacity. The CPV range offers both single-speed and dual-speed variants for this load. For instance, you can get a 500kg electric hoist with a fast dual lifting speed of 8m and 2m per minute on a single fall of chain (CPV/F 5-8), or a standard dual speed of 4m and 1m per minute on a two-fall setup (CPV/F 5-4). There's also a single-speed 500kg hoist option at 8m/min (CPV 5-8). If you need assistance choosing the correct 500kg electric hoist for your application, feel free to contact the Ultimate Lifting Solutions technical hoist sales team at 01384 986 026, and we will guide you through your requirements.

What is the maximum lifting capacity of this Yale hoist?

This specific variant of the Yale CPV F Electric Chain Hoist has a Safe Working Load (SWL) of 500kg; however, 250kg, 1 tonne, 2 tonne, and heavy-duty electric hoist variants of the Yale CPV are also available here at ULS.

What power supply does the 500kg Yale CPV F hoist require?

The Yale CPV F operates on a 400V, 3-phase, 50Hz power supply.

Are there different speed options available for the Yale 500kg hoist?

The 500kg capacity is available with both single-speed and dual-speed options. For instance, the CPV/F 5-4 offers dual speeds of 4 and 1 m/Min, while the CPV 5-8 offers a single speed of 8 m/Min.

Can this 500kg electric hoist be used with different chain falls?

Yes, the Yale CPV 500kg hoist is available in both single-fall and two-fall chain configurations, depending on the specific model and speed chosen.

What are the available suspension options for the 500kg Yale CPV F?

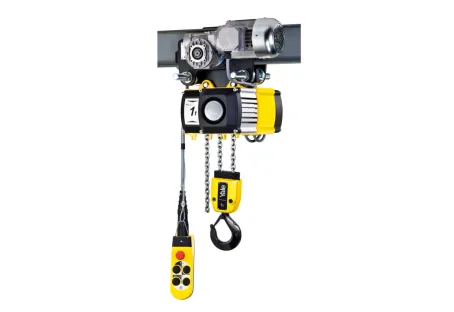

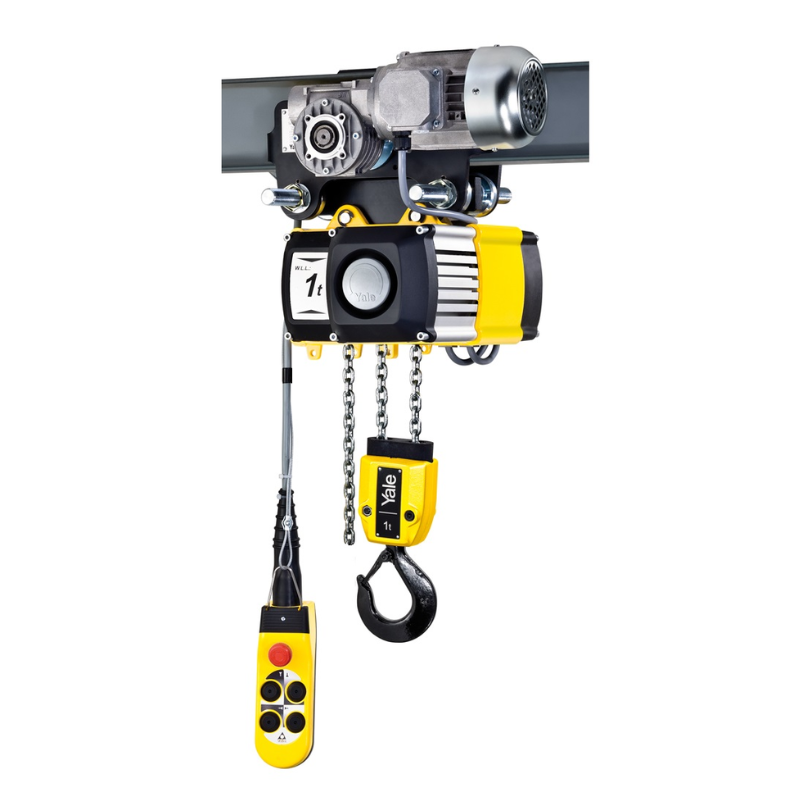

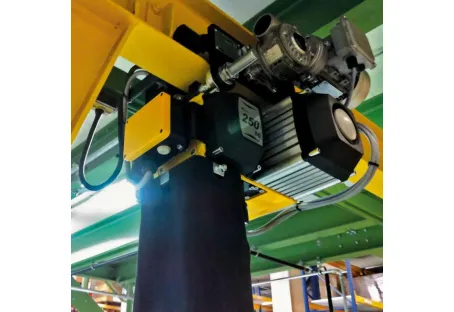

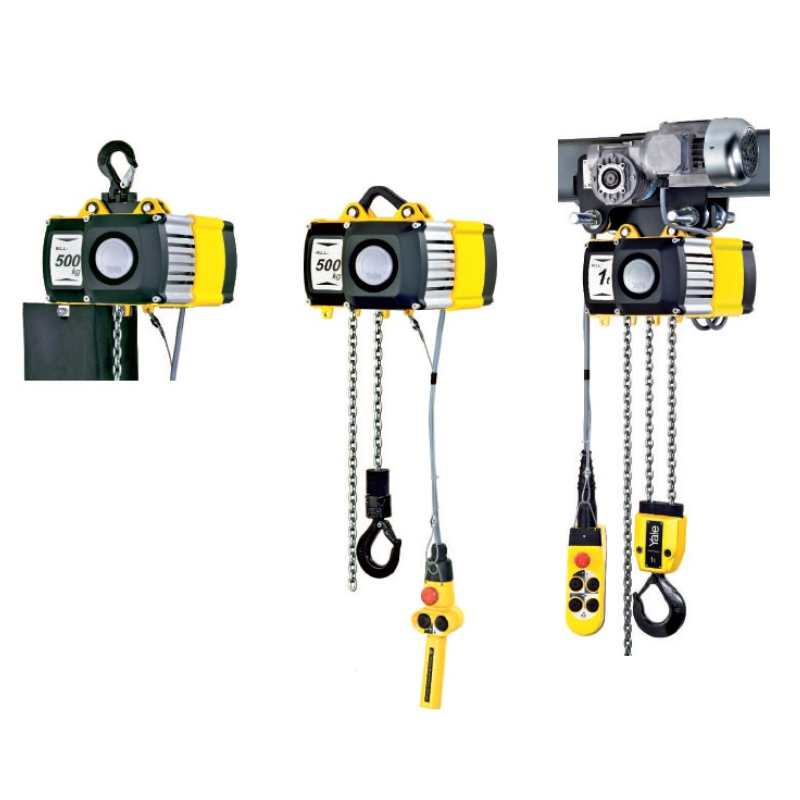

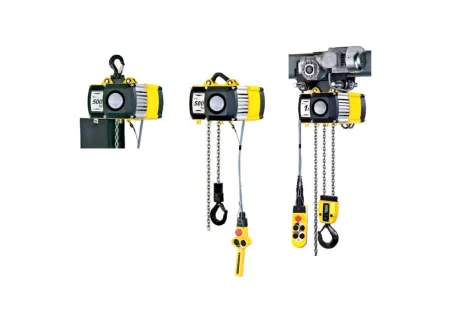

You can choose from top hook suspension, lug suspension, push trolley, or single-speed/dual-speed electric travelling trolley options to suit your application.

What is the standard height of lift (HOL) for this Yale 500kg hoist?

The standard Height of Lift (HOL) for this 500kg hoist is 3 meters; however, higher lifting heights of up to 15 meters are available. If you have more advanced hoisting needs, custom lengths beyond 15 meters can be supplied upon request, as there are no restrictions on overall length.

Should I purchase a chain container with the 500kg CPV hoist?

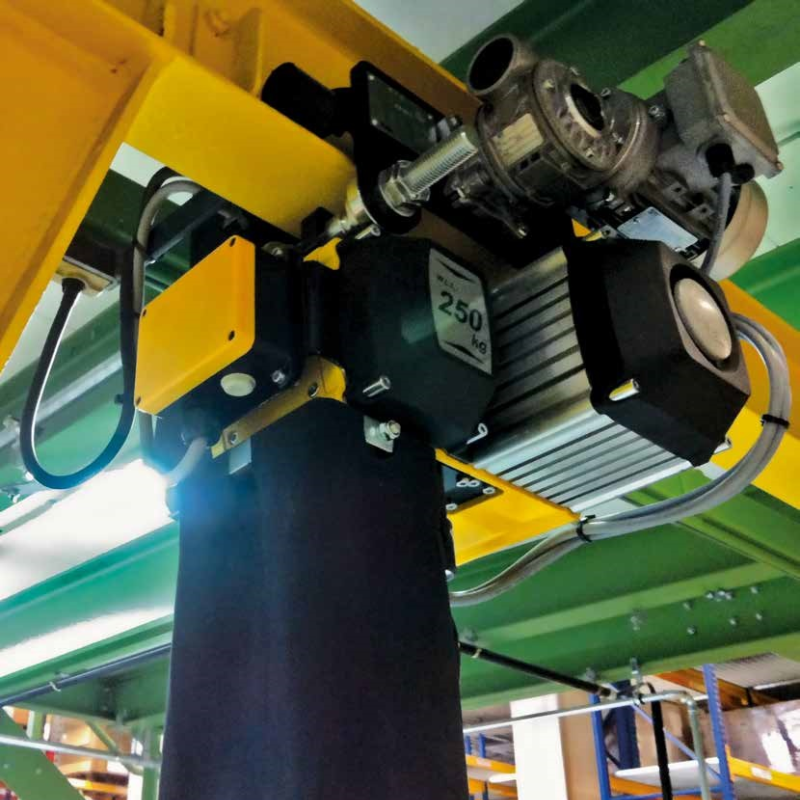

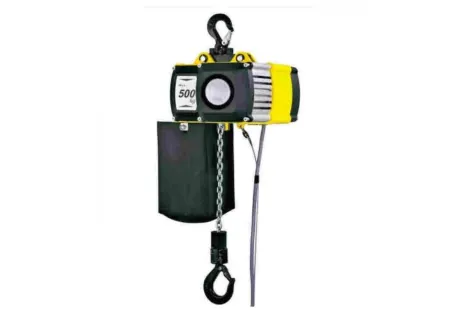

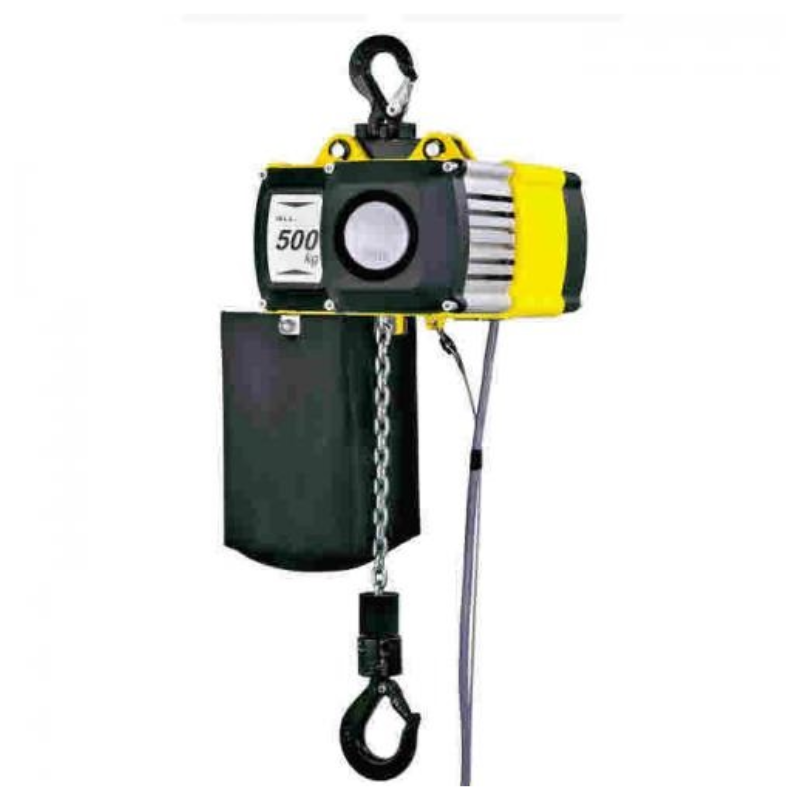

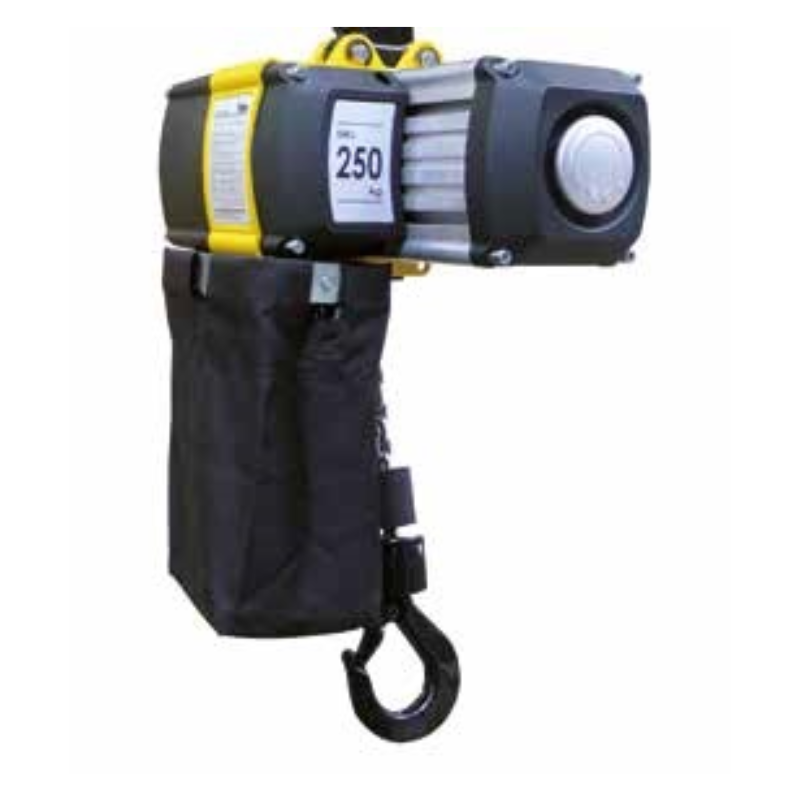

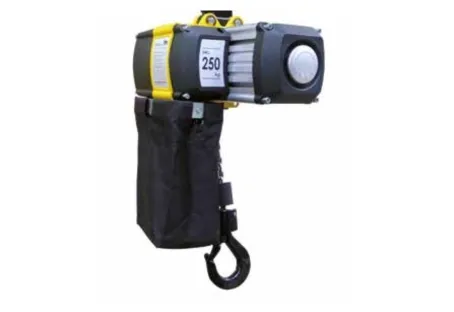

The Yale Impact Resistant Slack Chain Container is a recommended optional extra selected by most customers. This chain container is designed to keep the load chain tidy and away from the load attached to the hoist. It is manufactured from a heavy-duty fabric fitted to a steel bracket that fits directly on the bottom of the CPV F Hoist.

Should I purchase an accompanying Radio Remote Control system?

Purchasing a Radio Remote Control System to accompany the Yale CPV is a fantastic idea to enhance the safety and efficiency of your lifting and positioning applications. Adding a Radio Remote Control System gives flexibility to the operator during the lifting operation and movement of loads. Equipment can be positioned at a safe distance, ensuring better visual awareness for the crane operator.

Is the hoist protected against dust and water?

Yes, the Yale CPV series, including the 500kg variant, is protected up to IP 55 against dust ingress and water jets, and the pendant control is rated IP65.

What is the warranty on the Yale CPV F Electric Chain Hoist?

This Yale hoist comes with a 2-year warranty (excluding worn parts) and a lifetime lubricated gearbox.

How often should my hoist be inspected?

Under national and international occupational safety and health regulations, hoisting equipment must be inspected at least annually by a qualified professional. More frequent inspections may be required depending on working conditions. You can contact Ultimate Lifting Solutions Ltd's Sales Team on sales@ulslifting.com or 01384 986 026 for annual servicing, installation assistance, or any additional information.
