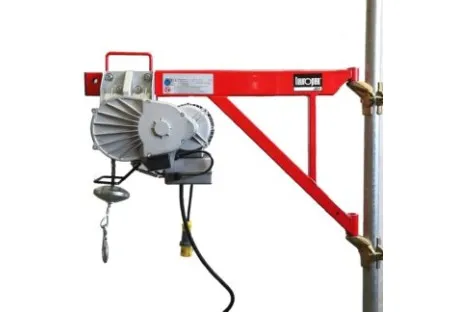

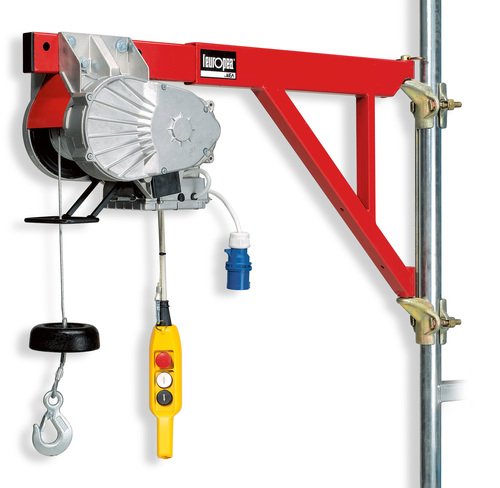

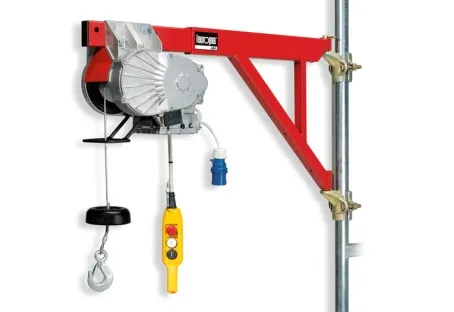

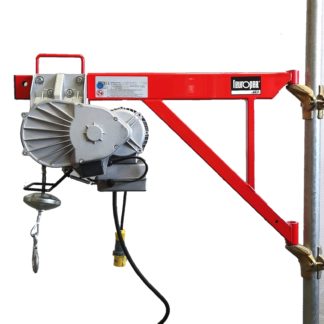

L'Europea HE235 Scaffold Hoist

Specifications – L’Europea HE235 Scaffold Hoist 200kg

Key Features of the L’Europea HE235 Scaffold Hoist

- 200kg lifting capacity

- 35m maximum lifting height

- Lifting speed: 23m/min

- 110V / 50Hz single-phase input

- 35m galvanised lifting rope with hook

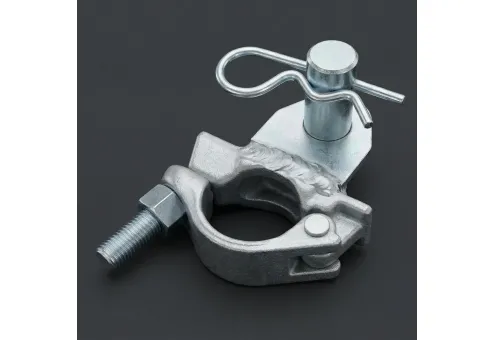

- Telescopic mounting bracket and scaffold clamps

- Pendant control with emergency stop

- Hoist weight: 40kg

Brand benefits – L’Europea Scaffold Hoists

L’Europea is a leading Italian manufacturer of scaffold and material hoists with decades of experience in the building equipment industry. Known for their engineering excellence, L’Europea hoists are trusted by construction professionals across the UK and Europe for their consistent performance, long service life and ease of use. Designed for everything from domestic refurbishments to large-scale commercial projects, these hoists offer a dependable lifting solution where safety, reliability, and speed are essential. Each unit is built to withstand the demands of busy job sites, with user-friendly features that make them ideal for day-to-day lifting operations.

The popular L’Europea Scaffold Hoist range includes:

- Lifting capacities from 150kg to 1600kg- Compact and rugged hoist construction

- Optional accessories such as remote controls, tipping buckets, and lifting baskets

- Conical brake motors and safety-focused designs

ULS Lifting supplies the full range of L’Europea products, alongside support for servicing, spares and compliance testing - you can find the L’Europea range here.

FAQs – L’Europea HE235 Scaffold Hoist

What Is the Lifting Height of the L’Europea HE235 Scaffold Hoist?

The L’Europea HE235 has a 35m lifting height, making it suitable for high-rise or multi-level scaffold applications.

How Much Can the L’Europea HE235 Scaffold Hoist Lift?

The HE235 Scaffold Hoist is rated to lift up to 200kg safely.

What Power Supply Does the L’Europea HE235 Scaffold Hoist Require?

The HE235 operates on 110V / 32A single-phase power, suitable for UK construction sites.

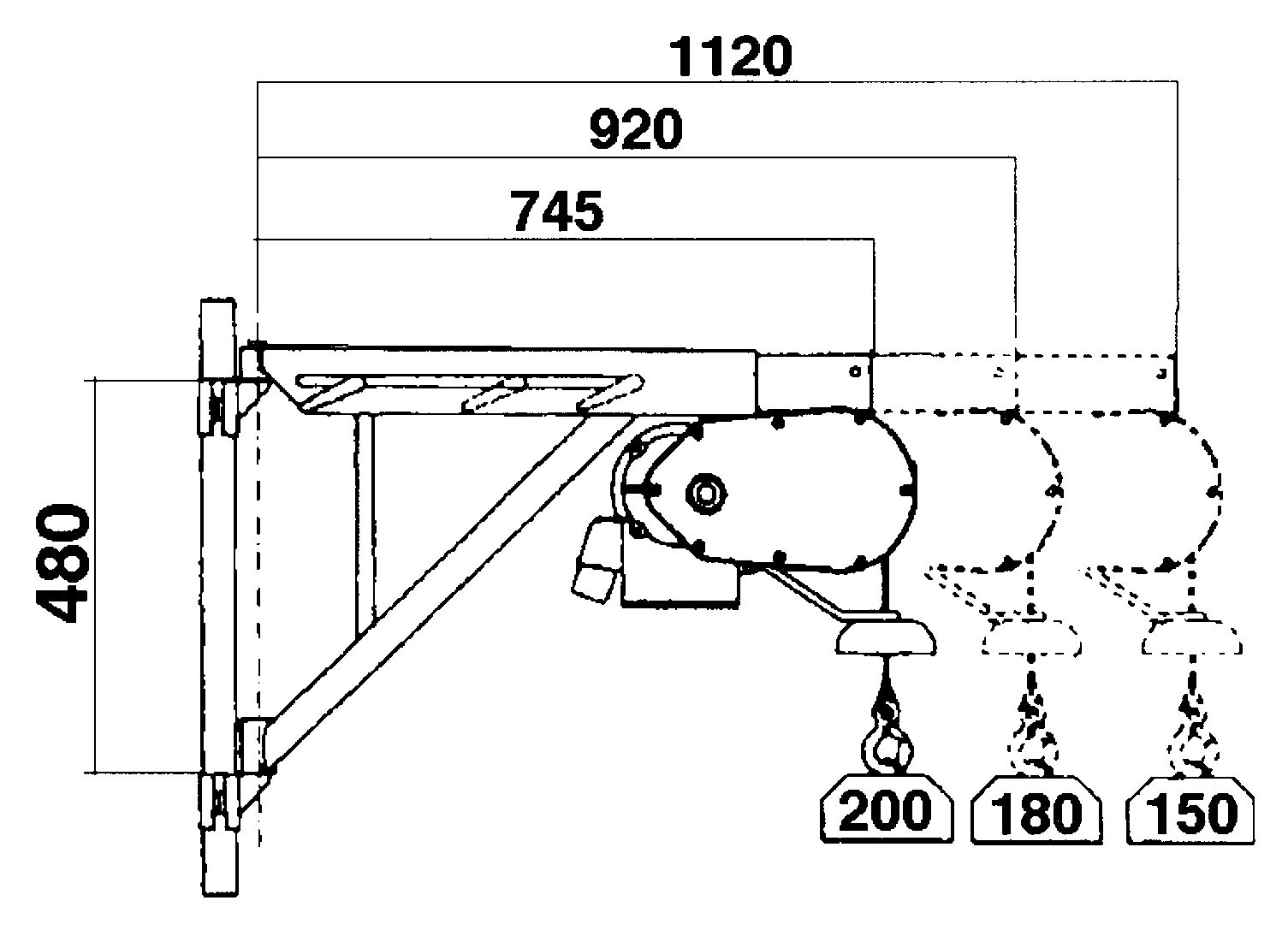

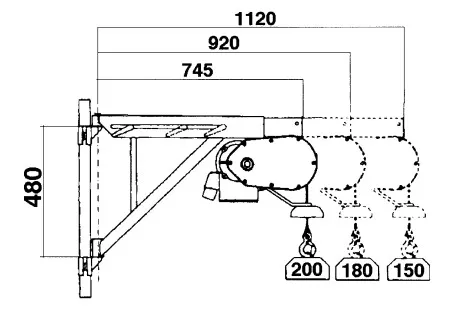

What Is the Benefit of the Telescopic Bracket on the L’Europea HE235 Scaffold Hoist?

The telescopic bracket allows the hoist to be mounted further out from the scaffold face, ideal for lifting over bay windows, balconies or other obstructions.

Can I Use the L’Europea HE235 Scaffold Hoist with Accessories?

The L’Europea HE235 works with a range of scaffold hoist accessories, including tipping buckets, brick baskets and remote controls.

Is the L’Europea HE235 Scaffold Hoist LOLER Compliant?

The L’Europea HE235 Scaffold Hoist is CE marked and should be installed and LOLER-inspected by a competent person at least annually. Contact ULS to arrange testing, email or phone us on 01384 986 026.

Does the L’Europea HE235 Scaffold Hoist Come Pre-Assembled?

The scaffold hoist comes mostly pre-assembled with all key components included. Basic setup on site is straightforward with the supplied clamps and bracket; however, the ULS team are able to install your hoist for you as part of our hoist installation service.

Can the L’Europea HE235 Scaffold Hoist Be Used With Gantries or Trestles?

Yes, the L’Europea HE325 hoist can be adapted for use with suitable gantry systems or trestles, depending on the application.

What Type of Loads Can the L’Europea HE235 Scaffold Hoist Lift?

The HE235 scaffold hoist is designed for lifting general construction materials, including site buckets, bricks, mortar, steel sections, and packaged materials.
