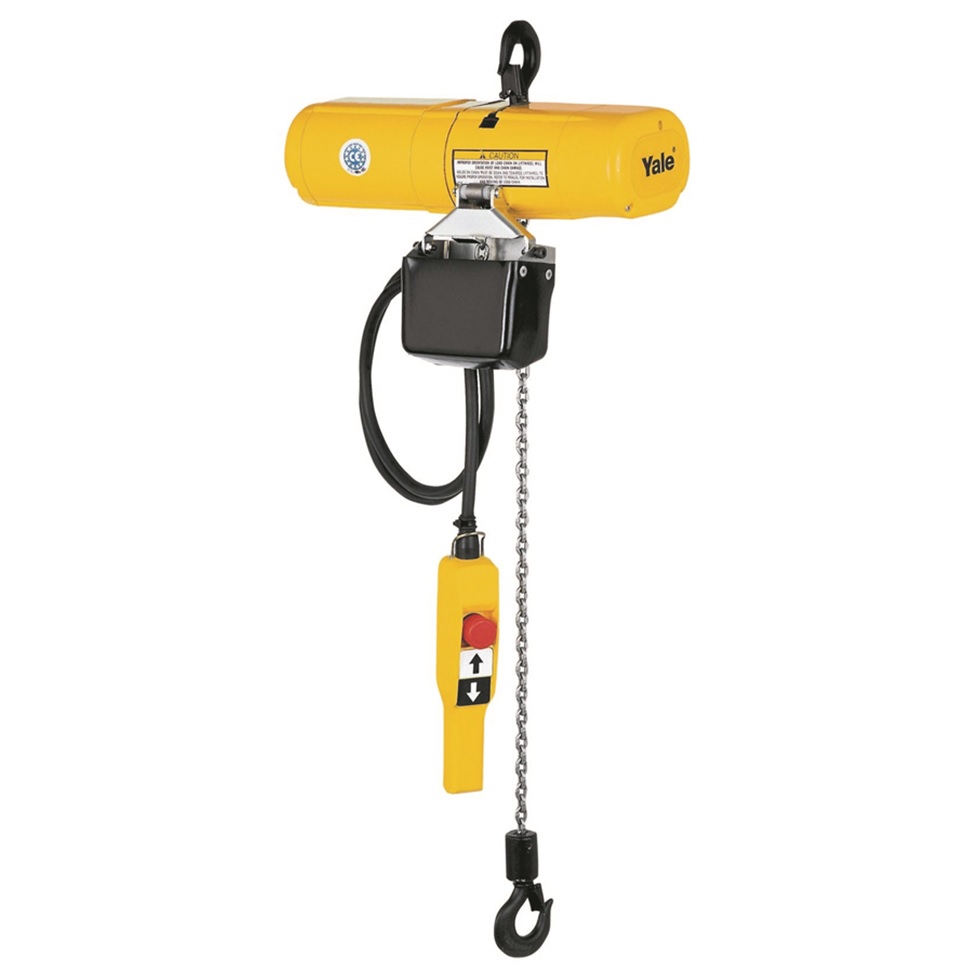

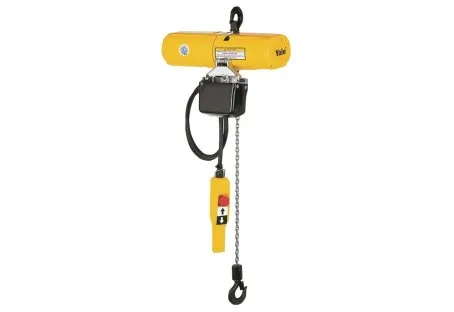

250Kg Yale CPS Electric Chain Hoist

Estimated lead time:2 to 3 Days Call if required sooner

Please call us if you need this item sooner

CLICK
& COLLECT

Next day
delivery

SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

250Kg Yale CPS Electric Chain Hoist

Brand:

Capacity

250Kgs
110v, 230, and 400v available

Description

250Kg Yale CPS Electric Chain Hoist is a small, lightweight hoist with top hook suspension for easy attachment to most suspension points. Available in 110 volt, 230 volt, or 400 volt power supply. Weight of only 14Kgs

Model/Capacity/Speed:

Total Height of Lift:

Chain Container:

£1,446.82 ex VAT

£1,736.18 inc VAT

Add to cart

Add to quote

250Kg Yale CPS Electric Chain Hoist (110V / 230V / 400V)

Need a compact, ultra-lightweight electric hoist for maintenance or light-duty industrial lifting? The Yale CPS 250Kg Electric Chain Hoist is one of the smallest and most portable hoists available on the UK market. With its reliable performance, robust build, and compatibility with standard power supplies (110V, 230V, or 400V), it’s ideal for overhead installations, jib cranes, and mobile operations.

Lightweight Performance. Built for Portability.

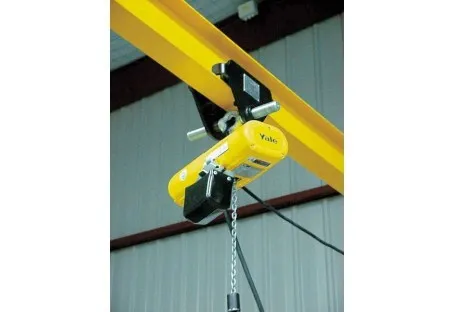

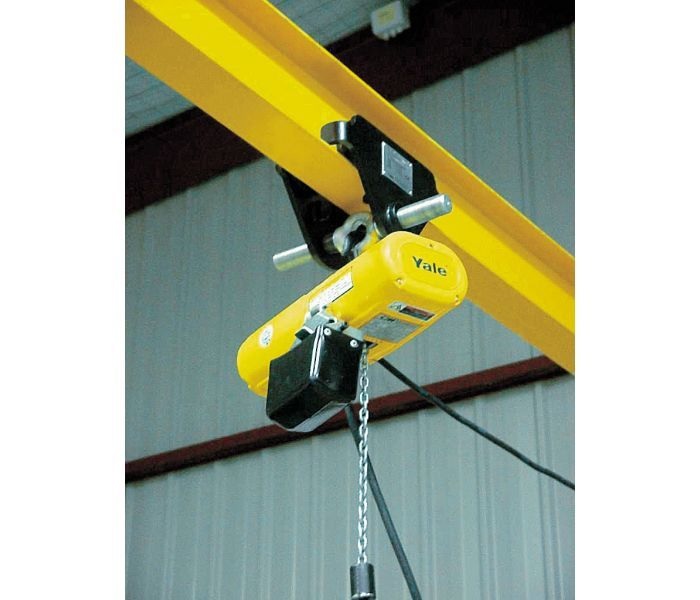

Weighing only 14kg (based on 3m height of lift), the Yale CPS Electric Chain Hoist is engineered for convenience without compromising safety or durability. Its small frame, integrated safety features, and hook suspension system make it perfect for fitting to manual trolleys, crane systems, or for use in mobile gantry crane setups.

Key Features of the Yale CPS Electric Hoist:

This lightweight, portable electric chain hoist comes with a variety of helpful features, making it ideal for easy and safe lifting.

- Lifting Capacity: 250kg

- Voltage: Available in 110V, 230V (single phase) or 400V (3-phase)

- Lifting Speeds: 2 or 5 m/min depending on model

- Control: 48V low-voltage pendant

- Suspension: Top hook as standard

- Chain: High-grade alloy chain with 2-fall configuration

- Duty Cycle: 25% ED (110V/230V), 30% ED (400V)

- Safety: Overload protection clutch & IP54 protection rating

Model Comparison Table:

Model	Capacity (WLL)	Power Supply	Lifting Speed	Duty Cycle	Weight
CPS 110/2-4	205Kgs	110v 1ph 50hz	2 m/min	25% ED	14 Kgs
CPS 230/2-4	250Kgs	230v 1ph 50hz	2 m/min	25% ED	14 Kgs
CPS 400/2-4	250Kgs	400v 3ph 50hz	2 m/min	30% ED	14 Kgs
CPS 400/2-5	250Kgs	400v 3ph 50hz	5 m/min	30% ED	14 Kgs

Enhanced Safety and Durability

The Yale CPS 250Kg Electric Chain Hoist comes with a variety of useful features designed to enhance safety and durability when lifting:

- Overload protection clutch

- Alloy load chain for smooth operation and extended life

- 10-pocket oblique-lay lift wheel for reduced chain wear

- Gear train sealed and grease-lubricated for long-term performance

- Thermally protected motor

- IP54 environmental protection

- Forged steel top and bottom hooks with safety latches

Installation & Customisation

This Yale CPS hoist is ready to use upon delivery with simple top hook suspension. For the easiest possible hoist setup, the ULS team offers full electric hoist installation services including testing and certification - simply get in touch with our team to arrange your Yale hoist installation.

Accessories For The Yale CPS 250Kg Electric Chain Hoist

Optional accessories such as impact-resistant chain containers, manual travel trolleys, or radio remote control systems are also available from ULS Lifting, adding additional capabilities to your hoisting setup.

Need load handling accessories? Pair this hoist with:

- Permanent lifting magnets

- Lifting clamps

- Bottle jacks

- Winches & pulleys

Why Choose the Yale CPS Electric Chain Hoist?

Yale Electric Chain Hoists are a superb option for those looking for safe and reliable lifting equipment:

- Designed and built by Yale, a leader in lifting gear worldwide- Smallest hoist in its class, making it perfect for mobile use

- Easy to install and maintain

- CE marked and safety certified

- Backed by manufacturer’s warranty and full after-sales support

- Lightweight and reliable with industrial build quality

Find Your Perfect Hoist With ULS

Explore other Yale hoist options such as the CPV/F series for heavier loads, or check out Stahl ST hoists for alternative electric hoist specifications.

For lighter, manual alternatives see our range of:

- Hand Chain Hoists

- Lever Hoists

Features and benefits of the 250Kg Yale CPS Electric Chain Hoists (110v, 230v, 400v) include:

- Easy installation and maintenance

- IP54 as standard

- 48v Control voltage

- Overload protection device as standard

- 10-pocket oblique-lay lift wheel for smooth chain operation, constant chain speed, and reduced chain wear

- Optional Impact-resistant Chain Container

- Gear train lifetime lubricated with oxidising grease

- Alloy load chain for smooth operation and maximum chain life

- Thermally protected hoist duty motor

- Rugged cast iron aluminum hoist frame

- 5:1 factor of safety

- Small, compact design for commercial applications

- A rigid latch-style upper hook prevents tangling of the power cord

- Hardened forged steel latch-style lower hook rotates 360degrees to prevent chain twist

- Totally enclosed non-ventilated hoist frame protects the motor from environmental contamination

- Precision bearings used in the hoist

- Lightweight and portable

- Hook suspension

Available in Hook Suspension as standard - Weights are based on the standard Yale CPS Electric Chain Hoist x 3m HOL - 250Kg Models are all on two falls of chain

Model	Capacity (WLL)	Power Supply	Lifting Speed	Duty Cycle	Weight
CPS 110/2-4	205Kgs	110v 1ph 50hz	2 m/min	25% ED	14 Kgs
CPS 230/2-4	250Kgs	230v 1ph 50hz	2 m/min	25% ED	14 Kgs
CPS 400/2-4	250Kgs	400v 3ph 50hz	2 m/min	30% ED	14 Kgs
CPS 400/2-5	250Kgs	400v 3ph 50hz	5 m/min	30% ED	14 Kgs

The hoist provided has been fully tested and is in good working order. It comes with operating instructions and the relevant conformity certificate.

Please note: In accordance with national and international occupational safety and health regulations, hoisting equipment must be inspected at least annually by a qualified professional. Adverse working conditions may require more frequent inspections.

For annual servicing of this product or any similar equipment, please contact our Sales Team at ULS on sales@ulslifting.com or on 01384 986 026.

Yale is one of the most popular brands in the material handling industry, trusted for applications ranging from offshore oil platforms to pulp and paper production.

Renowned for its broad product range, the Yale brand represents top quality and performance. Often included in complete overhead lifting systems, Yale products are used across hundreds of industries worldwide. In addition to its premier line of wire rope hoists, Yale also offers electric chain hoists, manual hoists, and lever tools, all under the same trusted name.

Yale CPS Electric Chain hoist Data Sheet

FAQs – Yale CPS 250Kg Electric Chain Hoist

What is the duty cycle of the Yale CPS hoist?

The 250kg Yale CPS hoist has a 25% ED duty cycle for 110V/230V and 30% ED for 400V models, suitable for occasional and light industrial use.

What is the default suspension method for the Yale Electric Chain Hoist?

These models come with a top hook for easy suspension from a suitable anchor point or trolley beam.

Can I add a trolley to my Yale hoist?

Yes, you can mount this hoist to a compatible Yale HTG manual trolley or powered trolley system.

Is the Yale CPS Electric Hoist easy to transport?

Absolutely! Weighing only 14 kg and with compact dimensions, the Yale CPS 250Kg Electric Chain Hoist is an ideal choice for mobile lifting setups and maintenance engineers.

Does the Yale CPS hoist include overload protection?

Yes, an overload clutch comes as standard on all Yale CPS models to prevent overloading and enhance safety.

What is the IP rating of the Yale CPS Electric Chain Hoist?

The CPS is IP54-rated for protection against dust and splashing water, making it suitable for most indoor industrial applications.

Can the Yale CPS be used on a jib crane?

Yes, it can be easily integrated into jib crane setups, either with a manual or motorised trolley.

Does the Yale CPS 250Kg Electric Chain Hoist include a chain container?

No, but impact-resistant chain containers are available as an optional extra.
