IMER TR225 Scaffold Hoist
Key notes for ordering:
Everything is supplied in the box ready to be used once un-packed. All hoists supplied tested and certified
Estimated lead time:****In stock *** Available for Next Day Delivery if ordered before 1pm
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
IMER TR225 Scaffold Hoist
Brand:
Capacity
200Kgs
Description

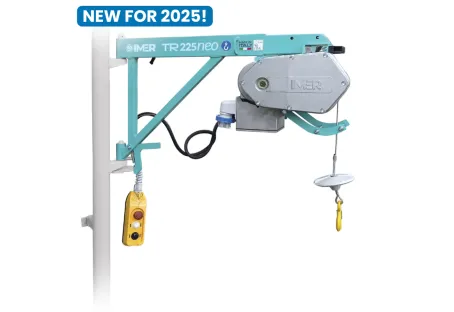

JUST LAUNCHED – the IMER TR225 NEO Scaffold Hoist builds on the trusted performance of its predecessor and is packed with features to make lifting easier and safer on-site.
Add to cart
Add to quoteRelated products
L'Europea HE235 Scaffold Hoist
HE235
The HE235 is a 200 Kgs Industrial Quality Scaffold Hoist with a fast lifting speed of 23m/min and a lifting height of 35m fitted to a telescopic top mounting bracket. Manufactured by L'Europea from their professional range of hoists. Power supply 110volt
£1,144.98 ex VAT
£1,373.98 inc VAT
Three Leg Wheelbarrow chains WBC3L
WBC3L
Three Leg Wheelbarrow Chains WBC3L is a certified Wheel-barrow Lifting Sling, supplied stamped and certified. These Lifting chain assemblies are designed to lift or lower standard wheelbarrows securely and safely. Great for use on building sites when used with a scaffold hoist.
£71.98 ex VAT
£86.38 inc VAT
IMER ES150 Scaffold Hoist
ES150
£834.98 ex VAT
£1,001.98 inc VAT
IMER ET200 Scaffold Hoist
ET200 NEO
The IMER ET200 NEO Scaffold Hoist is an industry favourite due to its 200 kg capacity, lifting height of 30m, and fast lifting speed of 19m/min. Supplied with a top mounting bracket, and Scaffold Transmission Pole. Ready to use once unboxed
£1,084.98 ex VAT
£1,301.98 inc VAT
Imer Tipping Buckets - 3 Sizes Available
ITB
Imer Tipping Buckets are our number one scaffold hoist accessory. Available in three sizes, 150Kgs / 200Kgs and 300Kgs capacity, and designed for lifting or lowering materials on site. Fitted with a lifting eye that easily fits any scaffolding hoist hook.
£199.98 ex VAT
£178.98 ex VAT
£214.78 inc VAT

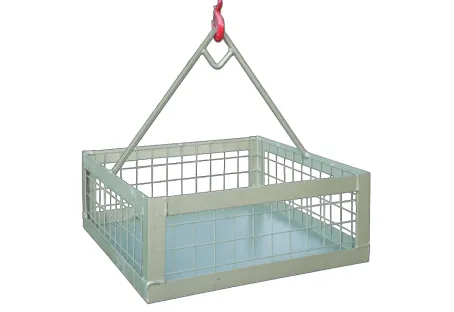

Brick Basket (for scaffold hoists) 250Kgs
9100002
Brick Basket (for scaffold hoists) 250Kgs with a central lifting eye. Great accessory for lifting bricks and other bulky, heavy, or loose materials safely on-site. The scaffolders brick basket is ideal for use with the IMER or other scaffold hoists
£268.00 ex VAT
£228.98 ex VAT
£274.78 inc VAT
Liftable Wheelbarrow 200Kg
860001
Strong and robust Liftable Wheelbarrow 200Kg capacity that offers a safe and easy way of lifting or lowering wet or loose materials on-site via a scaffold hoist or other lifting devices
£209.00 ex VAT
£194.98 ex VAT
£233.98 inc VAT
Bucket Carrier for scaffold hoists - 2 or 4 Bucket options
IBC
IMER scaffold hoist Bucket Carriers. two options are available, 2 buckets or 4 Buckets carriers that are perfect for lifting or lowering rubble onsite via plastic buckets. These lightweight bucket carriers are fitted with a lifting eye that suits Imer scaffold hoists and any other brand of scaffold hoist or builder's hoists.
£126.00 ex VAT
£114.98 ex VAT
£137.98 inc VAT
IMER ET300 Builders Gantry Hoist System 300Kgs
ET300 N
IMER Builders Gantry Hoist System 300Kg Capacity with heavy-duty site hoist. This Gantry Hoist System is an all-you-need kit to lift or lower all building materials on site up to 300kg quickly and safely.
£2,573.00 ex VAT
£2,398.98 ex VAT
£2,878.78 inc VAT
IMER Builders Gantry Hoist System 500Kg Capacity
G500 N
IMER Builders Gantry Hoist System 500kg capacity with heavy-duty site hoist. This is an all-you-need kit to lift or lower all building materials up to 500 kg quickly and safely on site. Kit includes both the hoist and gantry system.
£3,372.00 ex VAT
£2,998.98 ex VAT
£3,598.78 inc VAT
110 Volt Scaffold Hoist 200kg Capacity
DM200i
The 110-volt Scaffold Hoist has a 200 kg capacity and comes with a swivel bracket for direct attachment to scaffold tubes. It features a lifting height of 25 meters and a lifting speed of 25 meters per minute. This high-quality hoist is designed for professional builders and heavy-duty lifting. The DM200I is quickly becoming a customer favorite and one of our top-selling products.
£1,001.99 ex VAT
£798.98 ex VAT
£958.78 inc VAT
110 Volt Industrial Scaffold Hoist 150Kg Capacity
DM150APV
£1,170.75 ex VAT
£928.98 ex VAT
£1,114.78 inc VAT
110 volt Industrial Scaffold Hoist 200Kg Capacity
DM200AP
£1,175.99 ex VAT
£944.98 ex VAT
£1,133.98 inc VAT
110 Volt Floor Mounted Scaffold Hoist
DM200APP
110 Volt Floor Mounted Scaffold Hoist is an industrial quality outdoor hoist with 200 Kg Capacity able to reach a 30m lifting height. The DM 200APP is a clever variation of the traditional scaffold hoist with the motor being positioned at the floor lever. No more carrying a hoist up scaffolding & mounting at the highest point.
£1,726.99 ex VAT
£1,398.98 ex VAT
£1,678.78 inc VAT
20" Rubbish Chute Kit (5 chutes included)
RCK205R
Quality Red 20" Rubbish Chute kit for standard house clearance. Supplied with a 1 Top Hopper and 4 Straight Chute Sections to give an approximate 5m long Rubble chute Kit (extra sections can be added to create longer kits). Ideal for aiding the safe disposal of builders' waste materials, debris, or rubble from a standard house roof down to a skip. optional scaffold fixing frame available.
£199.98 ex VAT
£239.98 inc VAT
ET200 IMER Scaffold Hoist Extension Pole
1199170
ET200 IMER Scaffold Hoist Extension Pole is an official IMER product and is supplied with 3 scaffold clamps for quick and easy attachment to standard scaffold tubing. Once the Imer Extension Pole is fitted the ET200N Imer Scaffold Hoist can be attached
£199.99 ex VAT
£239.99 inc VAT

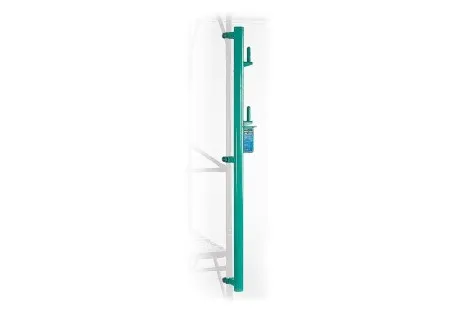

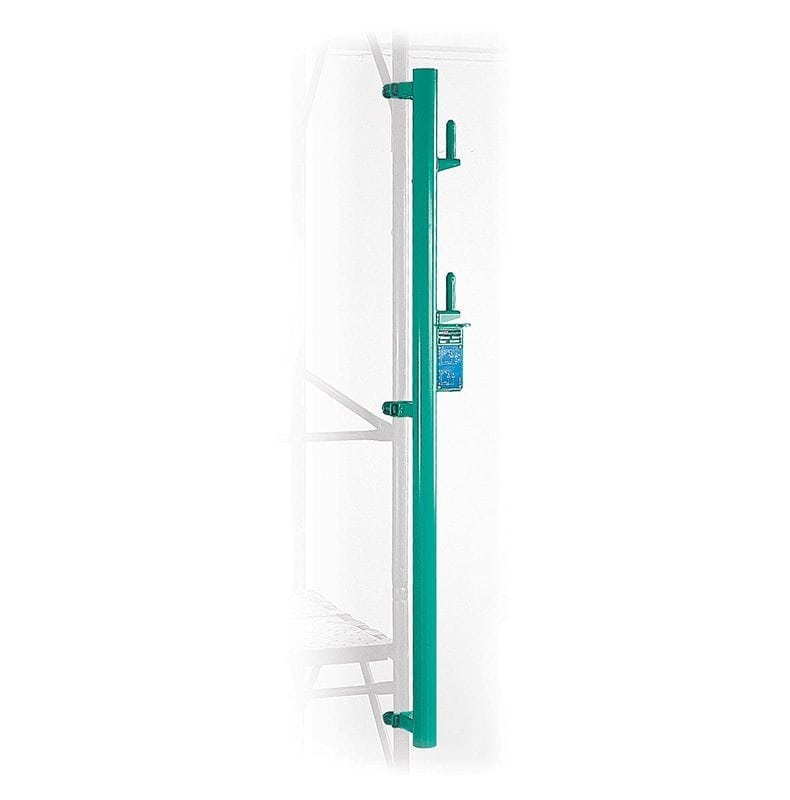

TR225 IMER Scaffold Hoist Extension Pole
TR225-1199170
The TR225 IMER Scaffold Hoist - 200Kgs c/w extendable mounting bracket, and Scaffold connection pole Is the TOP MODEL from Imer. 200 kg capacity, lifting height of 30m, and a fast lifting speed of 19m/min.
£199.98 ex VAT
£239.98 inc VAT
-494x340.webp)
20" Rubbish Chute Kit (10 chutes included)
RCK2010R
Quality 20" Rubbish Chute Kit (10 chutes included) designed for taller multi-level buildings such as office blocks, schools, hospitals, and flats. Supplied with 1 Top Hopper and 9 Straight Chute Sections giving an approximately 10m Rubble Chute Kit (extra sections can be added to create longer kits if required).
£399.98 ex VAT
£479.98 inc VAT
Imer TR225N Replacement Rope
TR225N 3233148
£159.98 ex VAT
£191.98 inc VAT
IMER ET200N Scaffold Hoist (Old Style)
ET200N
The IMER ET200 Scaffold Hoist is an industry favourite due to its 200 kg capacity, lifting height of 30m, and fast lifting speed of 19m/min. Supplied with a top mounting bracket, and Scaffold Transmission Pole. Ready to use once unboxed
-494x340.webp)
IMER Hoist Waterproof Cover
114130
Durable waterproof cover for scaffold hoists, designed to shield against rain and moisture on construction sites and outdoor projects. Suitable for all IMER Hoists.
£74.98 ex VAT
£89.98 inc VAT

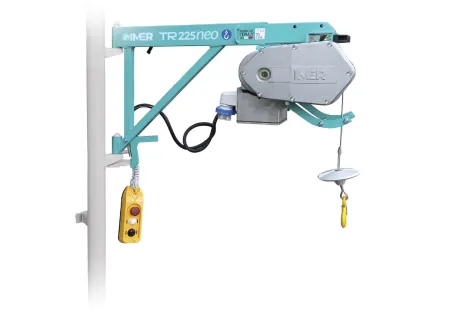

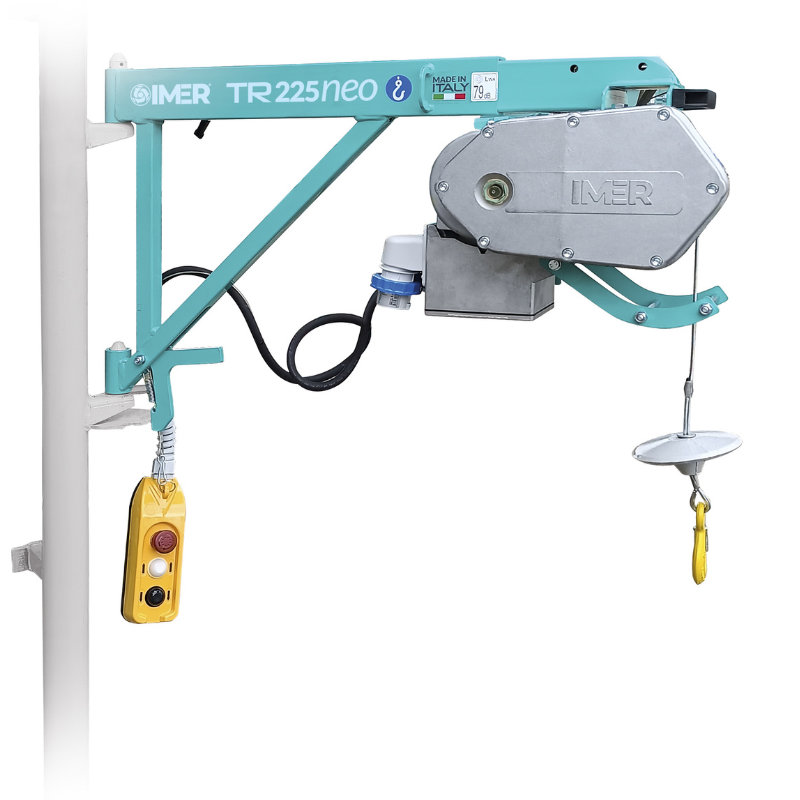

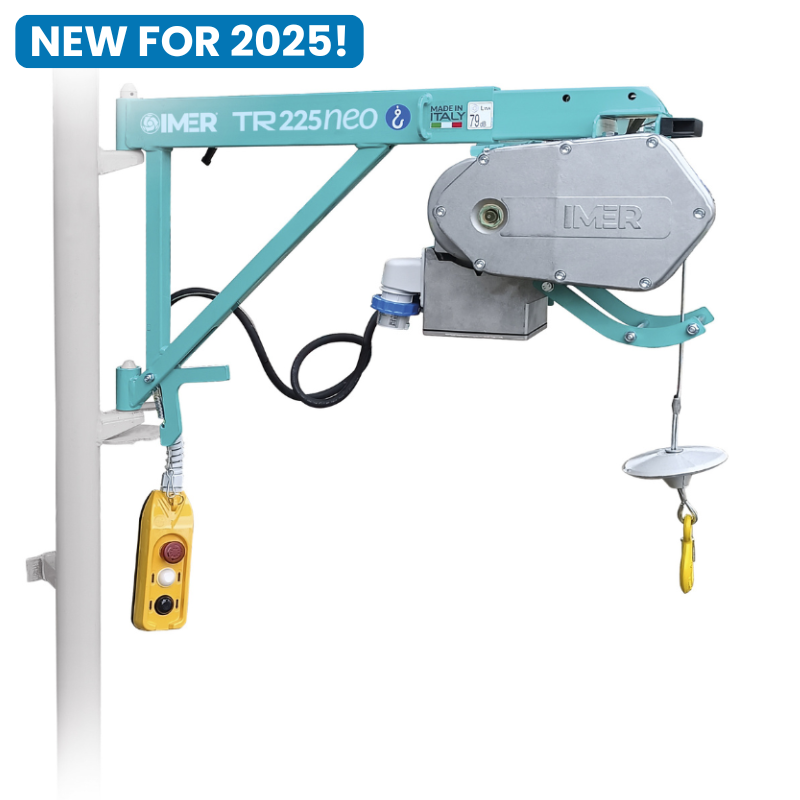

JUST LAUNCHED – the new generation of IMER hoists: the NEO range. The IMER TR225 NEO Scaffold Hoist builds on the trusted performance of its predecessor and is packed with features to make lifting easier and safer on-site.

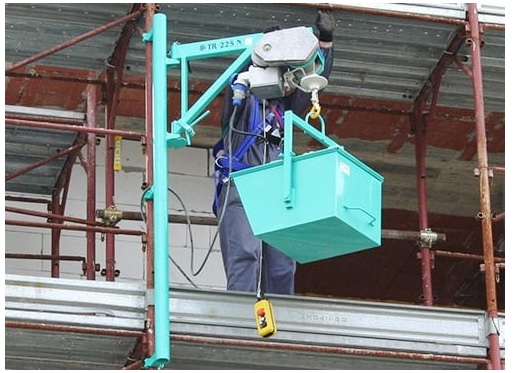

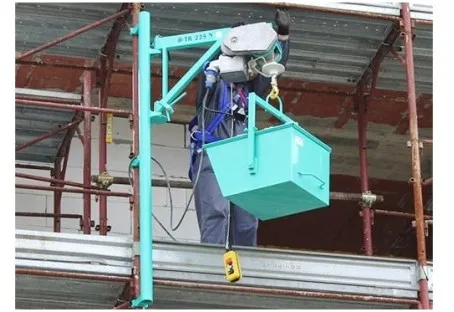

The IMER TR225 NEO Scaffold Hoist is the latest model of the trusted IMER TR225, developed for lifting goods and materials to upper levels of scaffolding safely and efficiently. The updated TR225 NEO featured updated benefits including a redesigned pulley hook, updated upper limit safety, and a new IP67-rated plug. It is easy to set up and operate, making it the go-to scaffold hoist for roofers, builders, and general construction teams.
With a safe working load of 225kg and a lifting height of up to 30 metres, the TR225 NEO is ideal for lifting buckets, wheelbarrows, bricks, tools, and more. It comes complete with 30m of 05mm wire rope, support brackets, and a 1.5m control pendant for safe ground-level operation.
Scaffold hoists, like the IMER TR225 NEO, are becoming increasingly popular among builders and scaffold companies. Their fast lifting speed reduces manual labour and prevents employee fatigue, replacing traditional gin wheels.
IMER offers three exceptional scaffold hoists: the ES150 NEO, ET200 NEO, and this TR225 NEO. The IMER TR225 is favoured by the hire trade for its quality and reliability. These are vastly upgraded variants of the older spec IMER ES150, ET200, and TR225 hoists, which ULS still stock.
| Model | Capacity | Max Lift Height | Lifting Speed | Scaffold Mount | Key Feature |
| ES150 NEO | 150kgs | 30m Lift | 19m/min | Scaffold Clamps | Direct fit to scaffold tube |
| ET200 NEO | 200Kgs | 30m Lift | 19m/min | Transmission Pole | Most Popular Model |
| TR225 NEO | 200Kgs | 30m Lift | 19m/min | Transmission Pole | Extendable Scaffold Bracket |

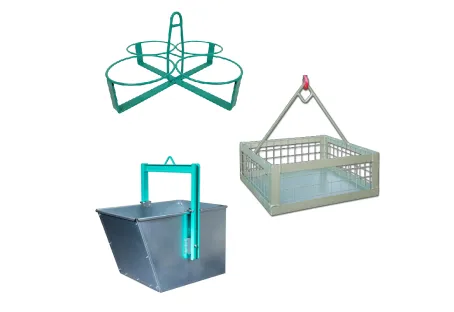

Enhance your workflow with IMER hoists accessories:
Heavy Duty Galv Tipping Buckets - Available in three size capacities, 150Kgs, 200Kgs and 300Kgs, and designed for lifting or lowering materials on site. Fitted with a lifting eye that easily fits any scaffolding hoist hook.

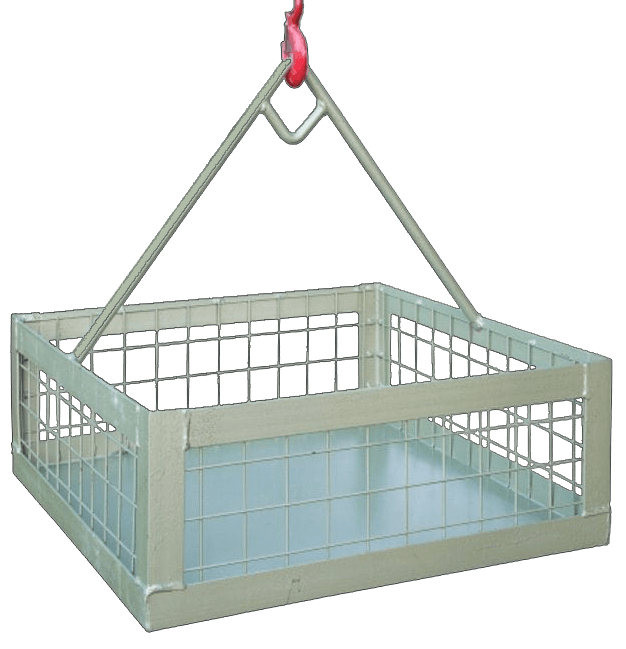

200Kgs Brick Basket - this scaffold hoist brick basket is a great accessory for lifting bricks and other bulky, heavy, or loose materials safely on-site. Frame-like design c/w strong lifting eye.

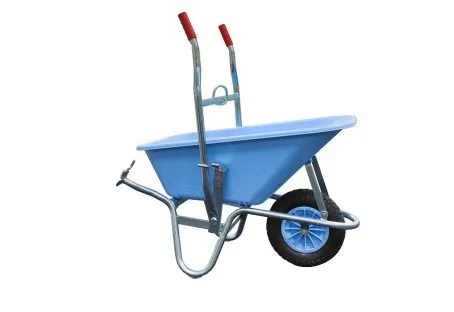

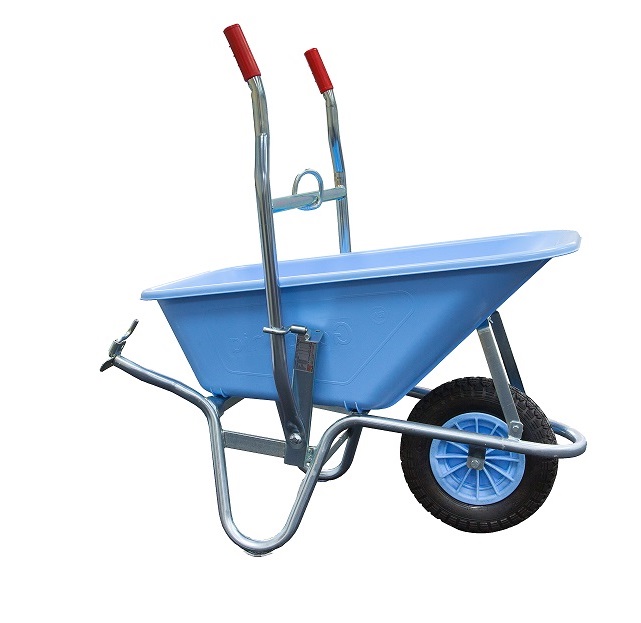

Liftable Wheel Barrow - Industrial quality liftable wheelbarrow, rated to 200Kgs, is a safe and easy way of lifting and lowering wet or loose materials via a hoist on any site.
Bucket Lifters -2 or 4 Bucket - IMER scaffold hoist bucket carriers come in two and four bucket variants that are perfect for lifting or lowering rubble onsite.
It offers a 200kg capacity, 30m lift height, and 19m/min speed. The low-noise motor (70db(A)) makes it perfect for noise-restricted sites.
IMER TR225 Scaffold Hoist - FAQ's
1. What is the difference between the IMER TR225 and the IMER TR225 NEO?
The IMER TR225 NEO is a next-generation upgrade from the IMER TR225, delivering enhanced ergonomics, increased durability, easier servicing, and streamlined production processes. It's designed to provide superior reliability and user-friendliness on construction and scaffolding sites.
2. What enhancements have been made to the IMER TR225 NEO's handling?
The IMER TR225 NEO introduces several new handling features:
Optimised barycentric lifting hook for balanced hoist transport
Front handle for improved grip during manual movement
Retractable locking handle for compact storage and safer control
A redesigned switch lever also serves as an auxiliary handling point
3. How has the IMER TR225 NEO been reinforced for greater durability?
Several upgrades improve the hoist’s robustness:
Dual lever limit switch system for better operational safety and fewer setup requirements
Protective casing around the electric motor to prevent damage
Integrated support cables to keep wiring and hoses tidy and out of harm’s way
Limit switch and lever mounted directly on the electrical panel to reduce mispositioning errors
4. Is maintenance easier on the IMER TR225 NEO?
Absolutely. Maintenance tasks have been simplified to save time and reduce tool requirements:
The support frame also functions as a removable drum cover, which is easilydetachable with just two screws
The drum bushing includes a threaded hole that can be used with a puller
Shorter shaft design improves both assembly and disassembly processes
5. What does the term “industrialised” mean in the context of the IMER TR225 NEO?
"Industrialised" means that the IMER TR225 NEO has been optimised for streamlined production. It features consistent build quality, improved part standardisation, and enhanced manufacturing efficiency, resulting in higher reliability and quicker delivery times.
6. Can the IMER TR225 NEO be used with existing scaffold systems?
Yes. The IMER TR225 NEO is designed to be compatible with most traditional scaffold hoist setups, including those that previously supported the IMER TR225 model.
IMER TR225 Scaffold Hoist - 200Kgs Lifting Capacity
The ET200 NEO IMER Scaffold Hoist features a 200kg capacity, top mounting bracket, and scaffold connection pole, 200 kg capacity, 30m lifting height, and 19m/min lifting speed, as well as a 110-volt power supply with a waterproof 1.5m pendant and plug. These quality-made hoists are fitted with upper-limit safety devices to protect from overlifting of goods.
Standard Equipment:
- Work positioning lever
- Updated IP67 plug
- Trolley compatibility
- Upper-limit safety device
- Direct control with 3-pushbutton IP65 1.5 m pendant control
- Self-braking motor with magnetic device
- Hoist protection cover included
Product Information
Capacity: 200kg
Lifting Height: 30m
Supply: 110v
Lifting Speed: 19m/min
Machine Weight: 42Kg
Scaffold Pole: Included (17Kgs)

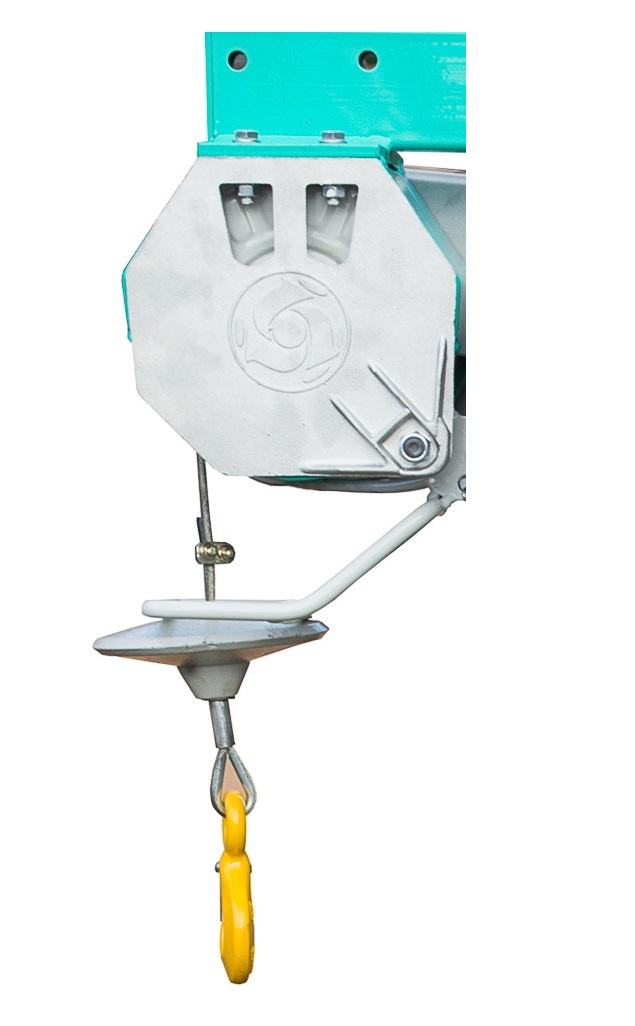

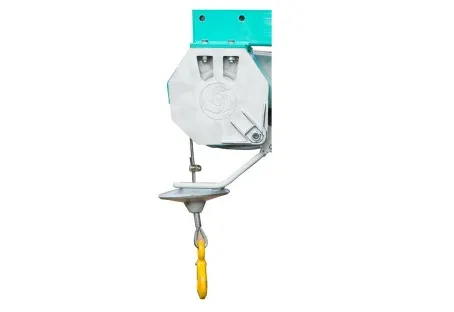

Upper Limit Safety Switch (Updated): Automatically cuts power when the hook reaches the highest point.
Redesigned Pulley Hook (New): Makes mounting to scaffold tubes quicker and more secure.
New IP67 Rated Plug: Improved water/dust resistance for safer outdoor site use.External Pendant Control (1.5m Cable): Allows safe remote operation from ground level.
| Feature | ES150 | ET200N | TR225N |
| Capacity | 150kg | 200kg | 200kg |
| Lifting Height | 30m | 30m | 30m |
| Supply | 110v | 110v | 110v |
| Lifting Speed | 19m/min | 19m/min | 19m/min |
| Machine Weight | 39Kg | 42Kg | 46Kg |
| Scaffold Bracket | Yes 5Kgs | Not Required | Not Required |
| Scaffold Pole | Not Required | Yes - 17Kgs | Yes - 17Kgs |
This IMER scaffold hoist is supplied and thoroughly tested in good working order, and comes supplied with operating instructions and the relevant conformity certificate.
According to national and international accident prevention and safety regulations, hoisting equipment must be inspected:
under the risk assessment of the operating company.
before initial operation.
before the unit is put into service again following a shutdown/change of site.
after substantial changes.
at least once per year by a competent person.
Don't hesitate to get in touch with our Sales Team at ULS on sales@ulslifting.com or 01384 986 026 if you require annual servicing on this product or any similar products.
under the risk assessment of the operating company.
before initial operation.
before the unit is put into service again following a shutdown/change of site.
after substantial changes.
at least once per year by a competent person.
IMER Group: Leaders in Construction Equipment
IMER Group, founded in Italy in 1962, is a leading European manufacturer of construction machinery and equipment. For over 50 years, IMER has provided high-quality products to construction professionals, enhancing efficiency and reducing physical effort. IMER's product range covers all building site needs, from concrete and mortar production to load handling, material cutting, soil compaction, and lifting solutions.
